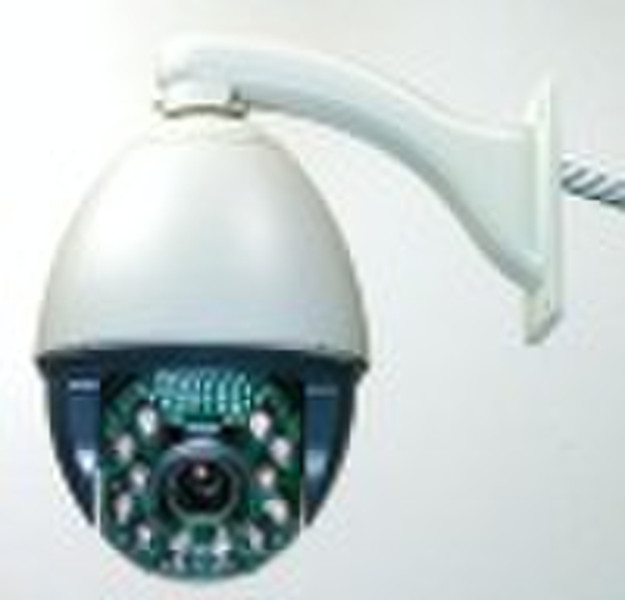

IR High Speed Dome

IR High Speed PZT Dome: Installation method: wall / pendent mount Image Sensor: 1/4 inch SONY Super HAD CCD Lens: 27x Zoom(Optical) 3.9mm-105.3mm Scanning System: 2:1 Interlace Horizontal Resolution: 480 TV Lines Min. Illumination: Color(0.5 Lux), B/W(0 Lux,IR On) Focus: Auto / Keyboard Control S/N Ratio: More Than 48dB (AGC Off) Electronic Shutter: 1/50(1/60) 1/10,000 Sec. White Balance: AWB Auto / Keyboard Control AGC: ON / OFF BLC: ON / OFF "Infrared Luminary: 12 pieces Φ20mm Super Power IR-LED 36 pieces Φ8mm big Power IR-LED" Infrared Wavelength: 850 nm Illuminate Distance: 80-100m Privacy Mask: 2pcs (only support Sony camera) Heater & Fan: Auto temperature control Video Output Level: 1.0 Vp-p (75 Ohms, composite) Power Consumption: 18W, 160W ( Infrared Lamps On ) Weight: Approx 7Kg including zoom Operation Humidity: 10% - 95% R h Auto control LED: LED Adjustable according to IR distance Tilt speed: 0.1- 95°/s Pan speed: 0.1°-180°/s A-B Scan: can set freely A-B Scan speed: 1-64 grade available Dwell time: 1-64s available Presets: 128 presets Running to preset speed: 1-64 grade available Cruise Tours: 8 groups Cruise Points per Cruise: 16 pcs Pattern Scan: 1 pcs Guard Point: 1-255 sec available Communication Protocol: Pelco-D,Pelco-P Communication: RS485 (+/-) Baud Rate: 1200/2400/4800/9600bps OSD menu: Support Compatible camera: SONY,LG,CNB,SAMSUMG,HITACHI Working Voltage: DC12V(-0.5V-+1V) Operating Temperature:-40°- +65° Swirling Angle: Horizontal: 0 - 360°Continues rotation, Vertical: 0 - 90° Dimensions: 520mm x 365mm x 365 mm
